Probability of Monthly Averages (in a Season) Rainfall Tercile Conditioned on ENSO

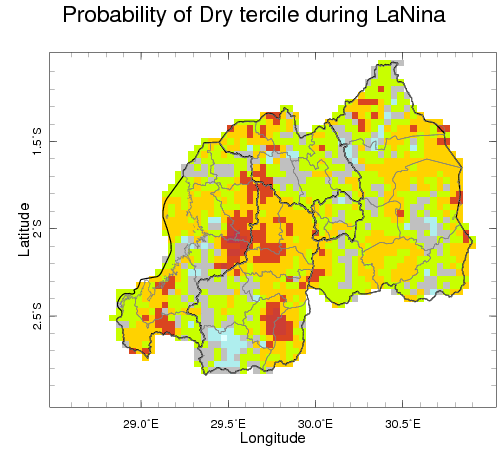

This map shows the historical probability (given in percentile) of seasonal average monthly rainfall falling within the upper (wet), middle (normal), or bottom (dry) one-third ("tercile") of the 1981-2013 historical distribution in the country given the state of ENSO (El Niño, Neutral, La Niña) during that same season.

Here, the ENSO state for each season is defined according to the Oceanic Niño Index (ONI). It is calculated using Sea Surface Temperature (SST) anomalies, based on centered 30-year base periods updated every 5 years, in the geographical box (170˚W, 5˚S, 120˚W, 5˚N). A season is considered El Niño (La Niña) if it is part of at least 5 consecutive overlapping 3-month long seasons where the ONI is above (below) 0.5˚C. Use the controls on the page to select the season, rainfall tercile category of interest, and ENSO state.

Clicking on the map will then display, for the selected point, yearly seasonal rainfall averages time series. The color of the bars depict what ENSO phase it was that year, and the horizontal lines show the historical terciles limits. This allows to quickly picture what years fell into what ENSO Phase and into what Rainfall Tercile category.

NB: This is not a forecast. It is based just on historical observations of rainfall and SST. However, it would be a good tool for exploring the effect of different ENSO phases on seasonal rainfall.

Reference for ENSO phases definition: V. E. Kousky and R. W. Higgins, 2007: An Alert Classification System for Monitoring and Assessing the ENSO Cycle. Wea. Forecasting, 22, 353–371. doi: http://dx.doi.org/10.1175/WAF987.1

Dataset Documentation

Reconstructed rainfall data over land areas on a 0.05˚ x 0.05˚ lat/lon grid (about 5 km of resolution). The rainfall time series (1981 to 2013) were created by combining quality-controlled station observations with satellite rainfall estimates.

Observations
Data Source: Monthly Rainfall
